Shear Cutting of Stainless Steel

Comparte esta información en:

Our cutting service by Sumiparts SAS, allows us to obtain high precision cuts for different industrial lines, art, architecture or design projects.

Cortes por Cizalla

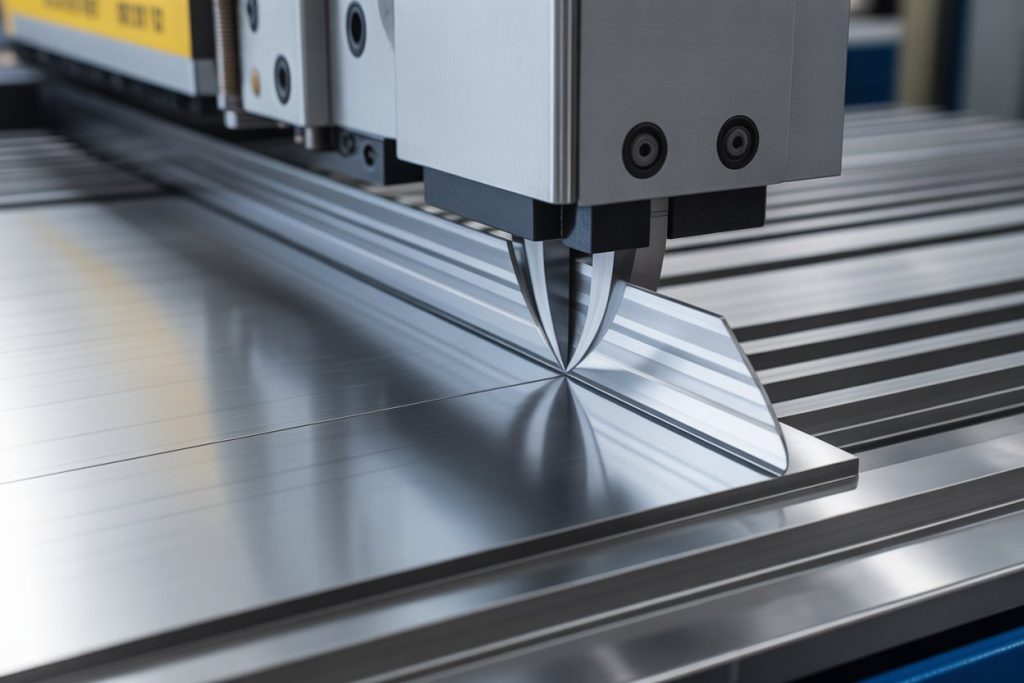

Stainless Steel Shear Cutting is another of the Sumiparts SAS services, which allows straight cuts of sheet and plate and is characterized by using two blades that slide between each other.

Shear Cutting is based on an initial crushing, followed by a partial cut by penetration into the surface of the piece and ending up with the fracture of the rest of the cutting section without chip removal.

The process is simple, in shear cutting the thrust force that the blades exert on the metal, at first causes it to be crushed, followed by a partial cut due to the penetration of the upper blade, then the pressure subjects the metal fibers under tensile stress.

During the process, the fibers quickly harden due to acrimony, or modification of the mechanical properties by cold mechanical action, and break.

The sheared edges have quite characteristic shapes, on the surface of the cut there is a region called rounded, below this there is a relatively smooth or burnished region, also a zone of fracture due to the downward movement of the upper blade and at the bottom of the edge is the burr or edge caused by elongation of the metal during the separation of the two pieces.

The Shear is used to make cuts of metal sheets or different materials , which ensure the accuracy of the required measurements according to the specifications, without deformations, burrs or slags.

Shear Cutting is not only applied to Stainless Steel, but also to Colled Rolled Steel, Hot Rolled Steel, Galvanized, Aluminum and Bronze, Carbon Steel.

Previous slide
Next slide

Our cutting service  by Sumiparts SAS, allows us to obtain high precision cuts for different industrial lines, art, architecture or design projects.

One of the Sumiparts premises, in the Shear Cutting service, is that the plans and measurements have been confirmed between the client and our specialists.

That is why the service is always advised by our Engineers team in our offices, and the use of digital drawings is required for the CNC Shear Cutting service or other CNC industrial processes.

If you want to know more about this service Cut By Shear, in SUMIPARTS we will be in the best disposition to collaborate. We want to provide you with the best services at your fingertips. Get in touch with us by calling Pbx: +57 748 22 13, Cel: (+57) 313 699 13 56 or by sending an email to info@sumiparts.com . Our technical team will be ready to assist you.
