The Mechanics of Success: Solving Thermal and Kinetic Challenges
A mold is a high-speed machine that undergoes violent thermal cycles. At SUMIPARTS, we treat injection mold engineering as a study of physics and thermodynamics.

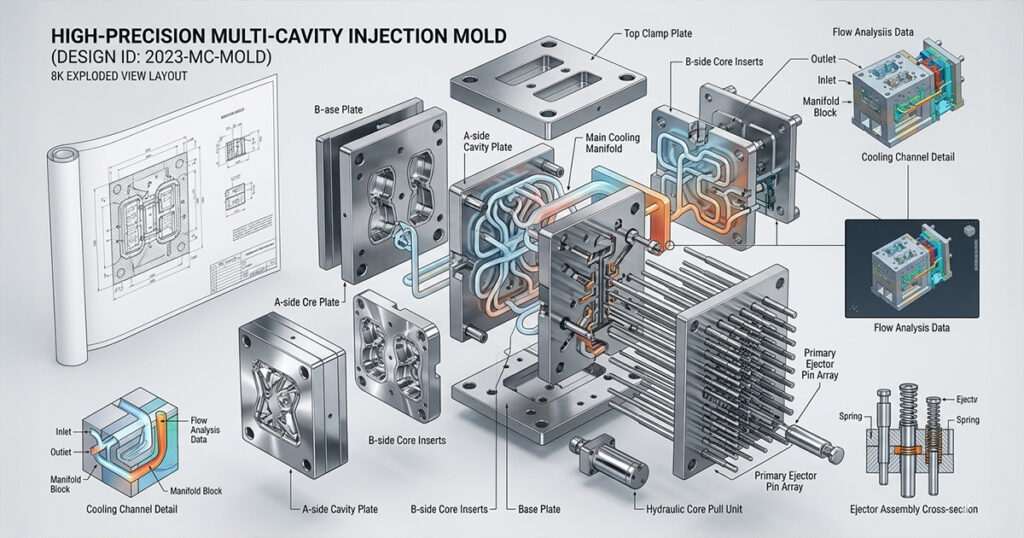

Advanced Thermal Management | injection mold engineering

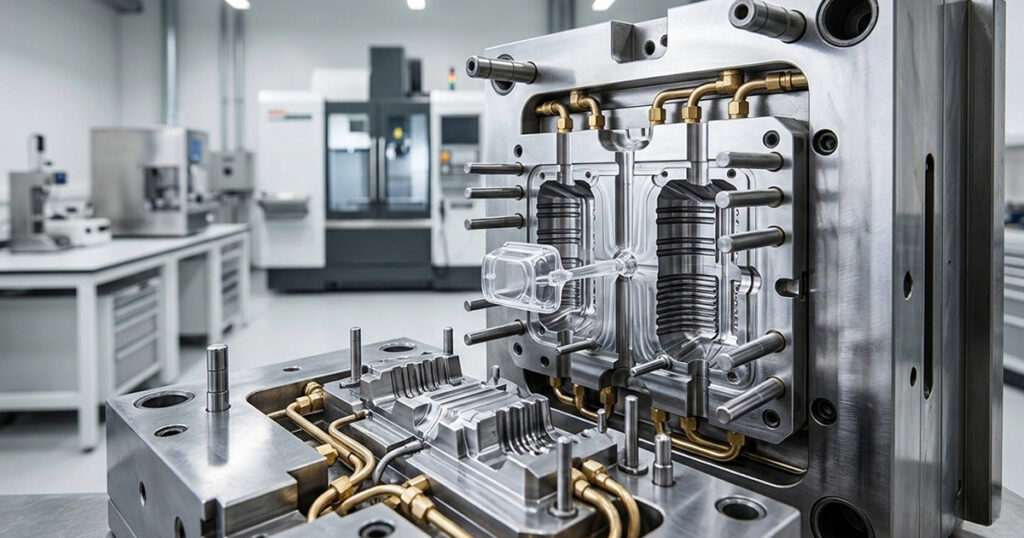

In the US market, cycle time is the primary driver of ROI. We execute cooling systems that go beyond simple water lines:
Thermal Mapping: We analyze your part’s thickest sections to strategically place cooling circuits where they are most needed.
Heat Transfer Optimization: By using specific high-conductivity alloys in critical mold inserts, we can pull heat away from the polymer faster than standard tool steel, shaving seconds off every cycle and preventing the dreaded ‘warpage’ that plagues sub-par tooling.

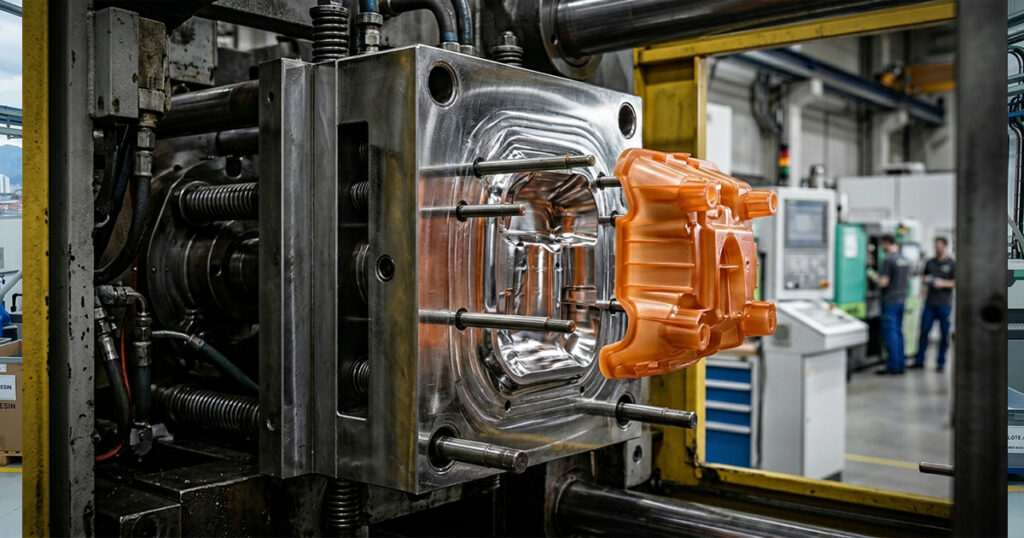

Kinetic Precision in Ejection
The moment of ejection is where many products fail. Our precision toolmaking ensures that every ejector pin, lifter, and slide moves in perfect mechanical harmony. We utilize hardened guiding elements that maintain alignment even after 500,000 cycles, ensuring that your automated production lines never experience a jam or a “stuck part” alert.

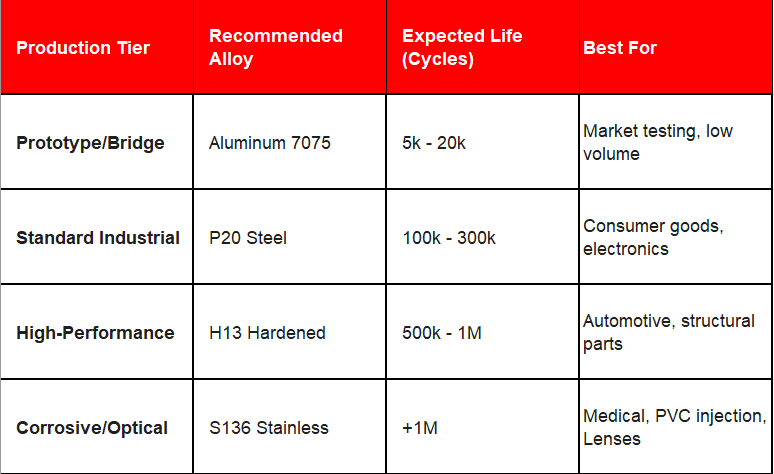

Strategic Material Selection: The "Volume-to-Value" Matrix | injection mold engineering
Deciding on the mold’s substrate is a financial decision as much as a technical one. In SUMIPARTS, we execute based on your production roadmap:
A. Bridge Tooling (Aluminium 7075-T651)
Ideal for the “Product Development” phase where the design might still undergo minor iterations.
The Strategy: Use high-strength aluminum to get parts in weeks, not months.
The Benefit: It serves as a perfect “bridge” to market, allowing you to fulfill early orders while the final high-volume steel tool is still being machined.
B. Production Class Tooling (H13 & Stainless S136)
When the volume hits the millions, the mold must be “over-engineered.”
H13 Hardened Steel: Our choice for high-stress applications. We perform vacuum heat treatment to reach the precise Rockwell C hardness required to resist the abrasive nature of glass-filled resins.
S136 Mirror-Finish Steel: For the medical and optical industries, where cleanliness and clarity are paramount. This stainless alloy prevents rust in the cooling channels, which is the #1 cause of mold failure in humid environments.
DFM (Design for Manufacturing) as a Service | injection mold engineering
Even though SUMIPARTS executes your pre-existing designs, our “Technical Audit” is a standard part of our workflow. Before the first CNC tool touches the steel, we look for:
Venting Optimization: Gases trapped in the mold cause “burn marks.” We execute micro-vents at the last point of fill to ensure your parts are pristine.
Draft Angle Validation: We cross-reference your material’s shrinkage rate with the draft angles provided in the CAD to ensure the part will release without drag marks.
Gate Integrity: We evaluate the gate type (Sub-gate, Edge-gate, or Hot Runner) to minimize the “witness mark,” ensuring the aesthetic quality of the final product.
Why Bogotá? The New Era of Nearshoring Precision | injection mold engineering
For US-based engineering firms, the traditional “offshore” model is breaking down. SUMIPARTS offers a more resilient alternative:
IP Protection: We operate under a legal framework that respects international intellectual property, ensuring your “Digital Heritage” is secure.
Real-Time Validation: We provide high-definition video feeds of your “First Article Inspection” (FAI). You can see the mold running in our Bogotá facility as if you were standing on the shop floor.
Logistical Superiority: If a mold needs a modification after six months of use, shipping it back to Colombia is a matter of days, not weeks, keeping your downtime to an absolute minimum.
The Lifecycle Guarantee: Preventive Engineering | injection mold engineering
A mold built by SUMIPARTS is designed to be maintained. Every tool we ship includes a “Service Blueprint,” which details:
Critical Wear Points: Where to lubricate and what to inspect every 25,000 cycles.

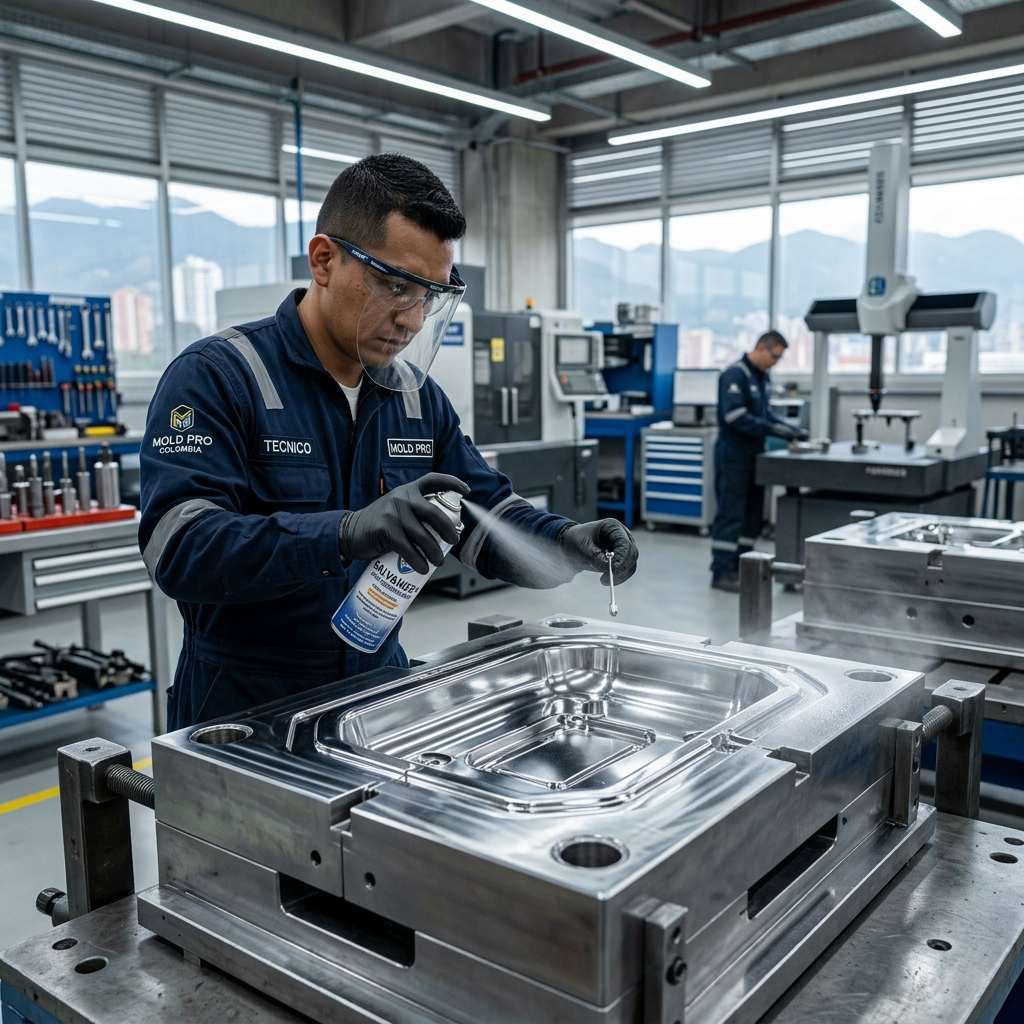

Cleaning Protocols: How to remove polymer residue without damaging the high-polish finish.
Spare Parts Kits: We can provide a “Safety Kit” of common wear items (pins, springs, bushings) along with the mold to ensure your US plant is never waiting for a part.
Closing Paragraph: Forging Your Industrial Legacy
At SUMIPARTS, we don’t just sell steel; we sell the peace of mind that comes with world-class injection mold engineering. We understand that your product’s success depends on the reliability of the tool we build today. By combining Colombian engineering ingenuity with a global standard for precision, we provide the backbone for your next big product launch. Let us transform your complex blueprints into high-performance assets that drive your profitability through 2026 and beyond. Welcome to the future of precision toolmaking in the Americas.
The Physics of "Shut-off" Surfaces | injection mold engineering
To achieve a truly “premium” feel in an injected part, the injection mold engineering must focus on the shut-off surfaces—the areas where the mold halves meet to form holes or internal features.
At SUMIPARTS, we execute these surfaces with a slight “preload.” This means that when the mold closes under 200 tons of pressure, the steel deforms just enough to create a gas-tight seal. This prevents “parting line flash” even as the mold heats up and expands during a long run. This level of precision toolmaking is what separates a standard vendor from a strategic partner. We ensure that your complex geometries, no matter how many internal cutouts they have, remain sharp and clean throughout the life of the project.
