The Engineering Behind Dimensional Stability
The essence of high precision molds lies in their ability to maintain dimensional stability under extreme thermal and mechanical stress. Mass production involves thousands of injection cycles per day, exposing the tool to constant expansion and contraction. At Sumiparts, our mold making process utilizes premium tool steels (such as H13 or S7) treated with specialized cryogenic and heat-treatment cycles. This ensures that the mold base and inserts remain “indifferent” to thermal fatigue, preventing the micro-shifts that cause flash, warping, or dimensional drift.
Tolerances: Where Microns Define Profitability

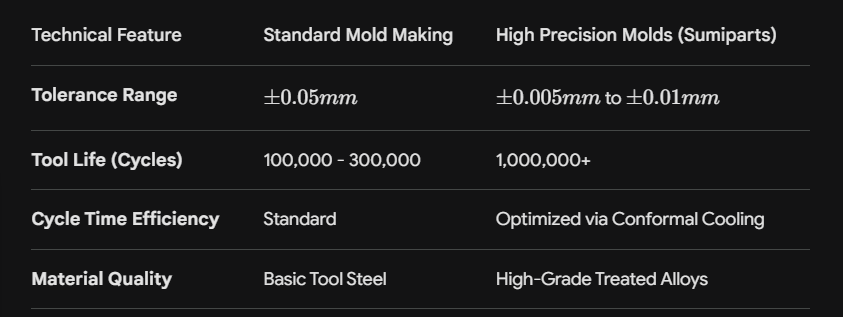

When we talk about “high precision,” we are operating in the realm of $\pm 0.005mm$. This level of accuracy in mold making is what allows for interchangeable parts in complex assemblies. Whether it is a medical connector or a high-speed gear for an electric vehicle, the mold must account for the specific shrink rates of technical polymers. Through advanced Moldflow simulations, Sumiparts engineers predict material behavior before a single piece of steel is cut, ensuring that the final high precision molds deliver parts that fit perfectly every time, without the need for secondary machining.
Advanced Machining: The EDM and CNC Synergy

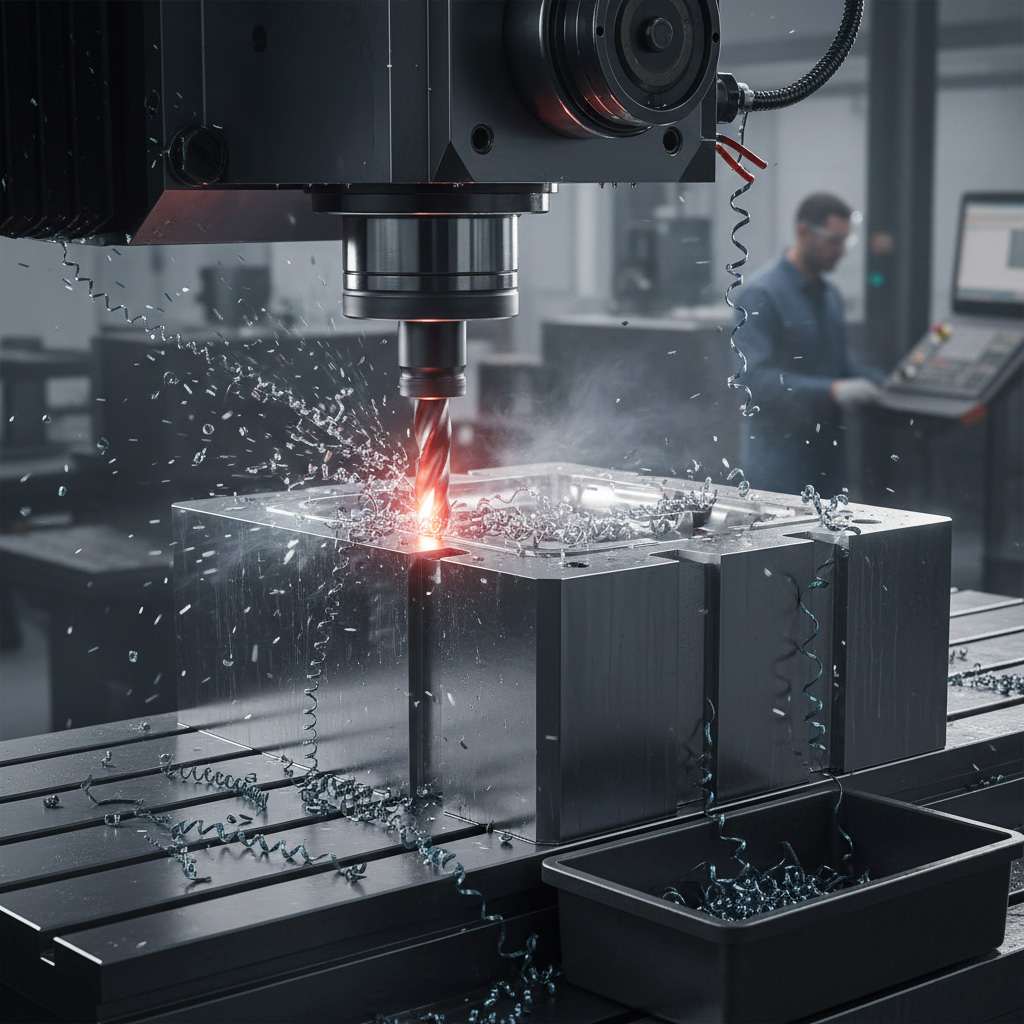

The secret to the surface finish and geometric complexity of our high precision molds is the synergy between High-Speed CNC Machining and Electrical Discharge Machining (EDM).
CNC Precision: Our 5-axis machining centers allow for complex geometries with superior surface finishes, reducing polishing time and maintaining edge crispness.
EDM Excellence: For deep cavities and sharp internal corners where traditional tools cannot reach, our EDM process uses precision-machined electrodes to erode steel at a molecular level. This is the cornerstone of expert mold making, allowing for the production of intricate features that remain consistent across millions of cycles.
Conformal Cooling: Efficiency at Scale

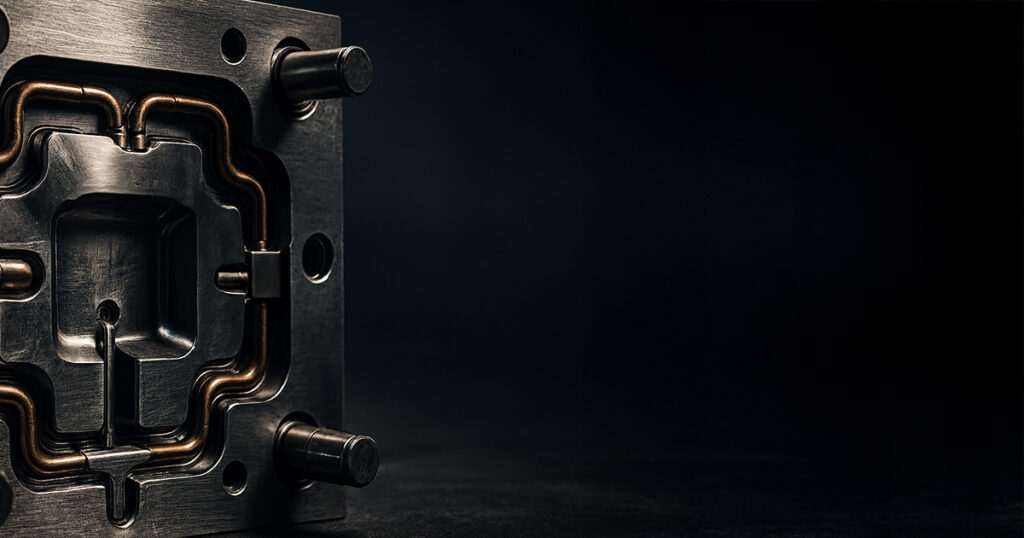

Consistency in mass production is not just about shape; it is about timing. High precision molds from Sumiparts often incorporate conformal cooling channels. Unlike traditional straight-drilled lines, these channels follow the exact contour of the part. This ensures uniform heat dissipation, which eliminates internal stresses in the plastic parts. Uniform cooling means faster cycle times and, more importantly, zero warping. In a high-volume environment, saving two seconds per cycle translates into significant annual savings and higher throughput.
Metrology and Quality Assurance (QA)
A mold is only as precise as the instruments used to measure it. Our QA laboratory utilizes Coordinate Measuring Machines (CMM) and laser scanning to verify every core and cavity. In mold making, “close enough” is a failure. We provide our clients with comprehensive metrology reports that serve as a “birth certificate” for their high precision molds. This data-driven approach ensures that the tool arrives at the production floor ready to perform at peak efficiency from the very first shot.
Maintenance: Preserving the "Zero-Defect" Standard
Precision is an investment that requires protection. Sumiparts offers proactive maintenance protocols for all our high precision molds. By monitoring parting line wear and cleaning venting systems, we prevent the “creep” of tolerances over time. Expert mold making includes designing for maintenance—using modular inserts that can be easily inspected or replaced without compromising the integrity of the entire mold base.
Advanced Metallurgy: The Foundation of Tooling Longevity
The journey toward high precision molds begins long before the first CNC path is programmed; it starts with molecular integrity. In mass production, the “wash-out” effect caused by high-pressure resin flow can erode standard steels within a few thousand cycles. At Sumiparts, our mold making philosophy dictates the use of ESR (Electro-Slag Remelted) steels. These materials undergo a secondary refining process that eliminates non-metallic inclusions, resulting in a steel with isotropic properties. This means the mold expands and contracts uniformly in all directions, a critical factor when holding tolerances of +/- 0.002mm across a multi-cavity tool. Without this metallurgical rigor, precision is merely a temporary state, not a permanent feature of the production line.
Kinematics and Synchronization in Multi-Cavity Tooling
Consistency in mass production often requires multi-cavity configurations (16, 32, or even 64 cavities) to meet volume demands. The challenge in high precision molds is ensuring “cavity balance”—the physical reality where every single cavity fills at the exact same pressure and temperature.
Rheological Symmetry: Our mold making process involves complex runner balancing and gate sizing calculated via advanced fluid dynamics.
Mechanical Sychronization: We utilize high-precision centering components and guided ejection systems. In high-speed cycles, even a 0.01mm misalignment in the ejection plate can cause asymmetric wear on the leader pins, eventually leading to “parting line mismatch.” By treating the mold as a high-speed machine rather than a static block of steel, we ensure that the mechanical kinematics preserve the tool’s precision over millions of cycles.
Scientific Molding: Data-Driven Consistency

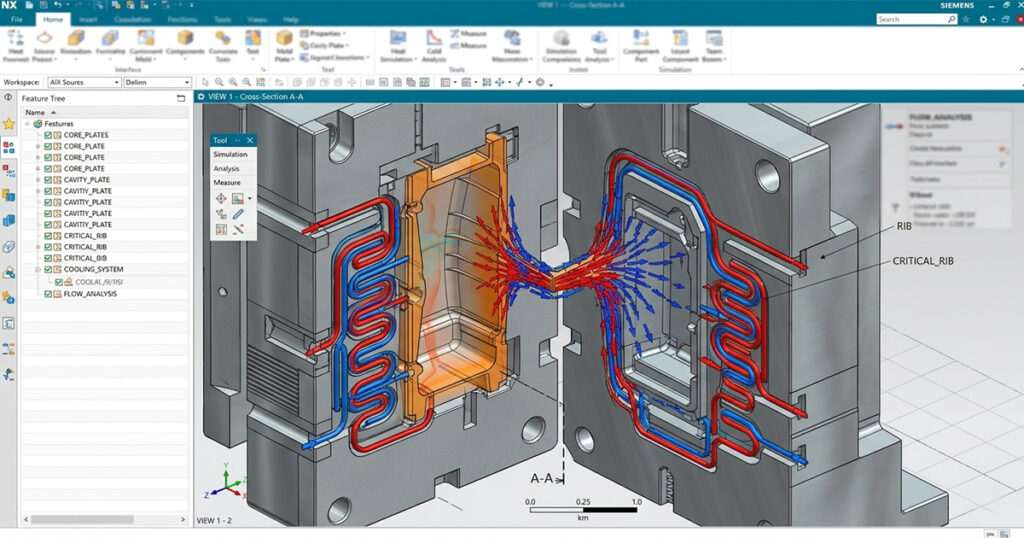

To achieve true consistency, high precision molds must be paired with Scientific Molding principles. During the mold making and T1 trial phases, we establish a “Decoupled Molding” process. We analyze the viscosity curve, pressure drop, and gate freeze time.
The Transducer Advantage: We can integrate in-cavity pressure sensors that provide real-time feedback. This data allows the injection machine to adjust for slight variations in resin batches or ambient humidity. For the client, this means the mold isn’t just a tool; it’s a calibrated instrument that signals when it needs maintenance, shifting the paradigm from reactive repairs to predictive asset management.
The Digital Heritage of Manufacturing
manufacturing is no longer a purely physical endeavor; it is the physical manifestation of digital perfection. At Sumiparts, we treat every high-precision mold as a critical asset within your company’s ‘Digital Heritage.’ By maintaining a digital twin of every tool we create, we ensure that if a replacement is needed years down the line, the precision is replicated flawlessly. Our commitment to high precision molds and advanced mold making is a commitment to your brand’s reputation. We provide the mechanical certainty that allows your business to scale globally, knowing that your product’s quality will remain uncompromised, regardless of the volume.
