The Anatomy of a Perfect Mold: What’s Inside the Hot Runner?
In high-level mold making, the hot runner system is the component that defines process efficiency. Unlike conventional molds that generate a cold runner (waste), Sumiparts systems keep the polymer in a molten state at all times, from the machine nozzle to the part cavity.
This level of thermal control allows a plant to move from a standard operation to a world-class one, minimizing waste and maximizing speed.
The Mold's "Circulatory System": Key Components
The success of mold making with hot runner technology depends on the seamless integration of three elements:

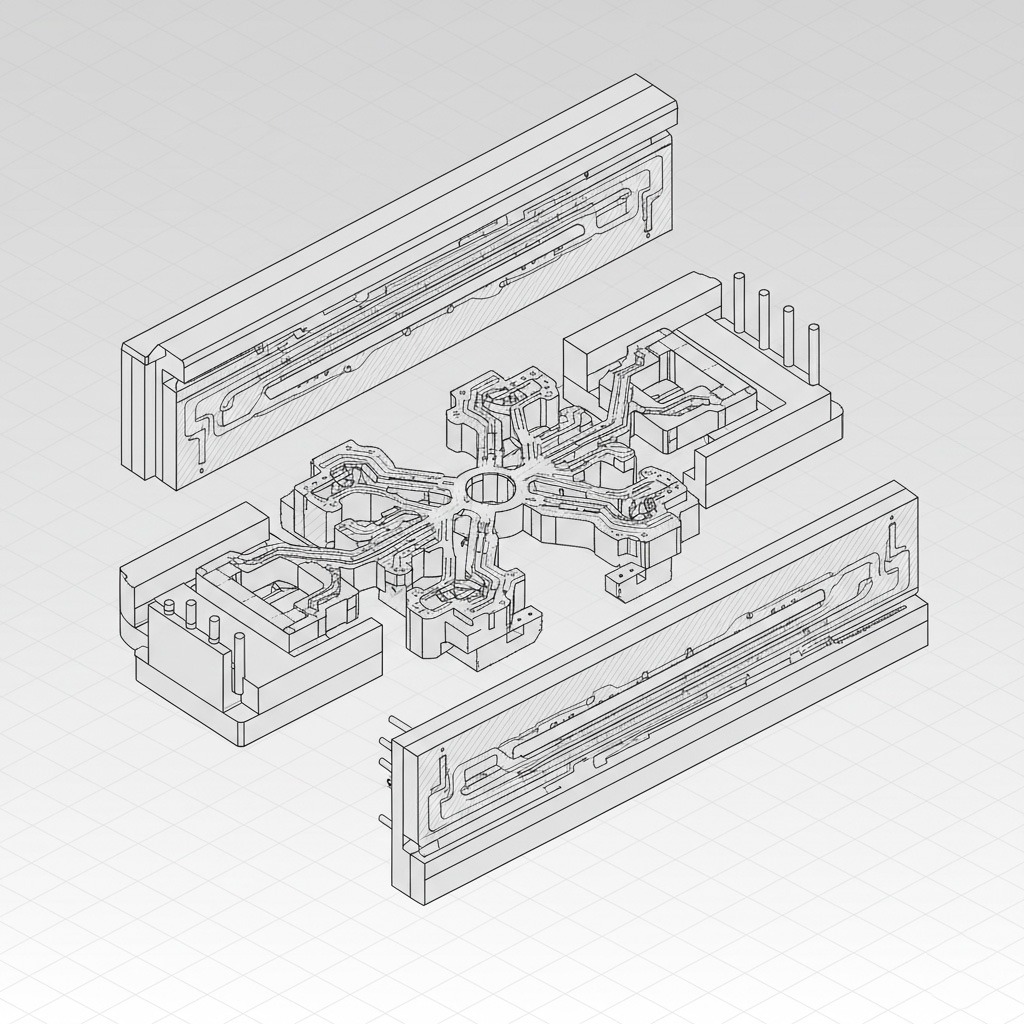

1. The Distribution Manifold
This is the central block that delivers plastic to the nozzles. At Sumiparts, we manufacture manifolds with geometrically balanced channels. This ensures that the injection pressure is identical in every cavity, guaranteeing that all injected parts are perfect clones in weight and dimension.
2. Valve Gates and Thermal Tips
These are the final delivery points for the material. We offer thermal tip nozzles for fast cycles and valve gating systems for parts requiring a perfect aesthetic finish, eliminating the “vestige” or gate mark on the final part.
3. The Thermal Control System
Without precise control, plastic can degrade. Our systems integrate high-sensitivity thermocouples and zoned heaters that maintain material stability, allowing even the most complex engineering resins to be processed.
Technical Advantages of Sumiparts Technology
Zero Waste (No Scrap): By eliminating the solid runner, you save between 10% and 30% in raw material.
Shorter Injection Cycles: The cooling time for the runner is eliminated, allowing the mold to open much faster.
Lower Injection Pressure: By keeping the material hot, the viscosity is lower, protecting the lifespan of your injection molding machine.
Learn More...
Want to learn more about our Mold Making services? SUMIPARTS is dedicated to serving you. We strive to bring the best solutions directly to you, whenever you need them. Reach out to us via PBX at + 57 601 748 22 13, call us at +57 313 699 13 56, or email us at info@sumiparts.us. Our team is eager to provide the support you deserve.
